Potential Difference in Circuit
A current of
15
m
A

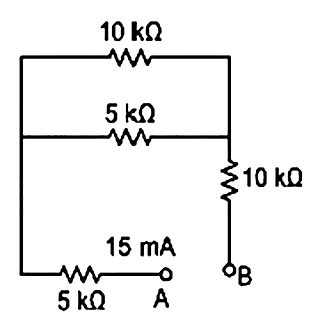

flows in the circuit as shown in figure. The value of potential difference between the points
A
and
B
will be:
SELECT ONE OPTION
A
50
V
B
75
V
C
150
V
D
275
V
