Loudspeaker Frequency Calculation
Two loudspeakers (
L1 and

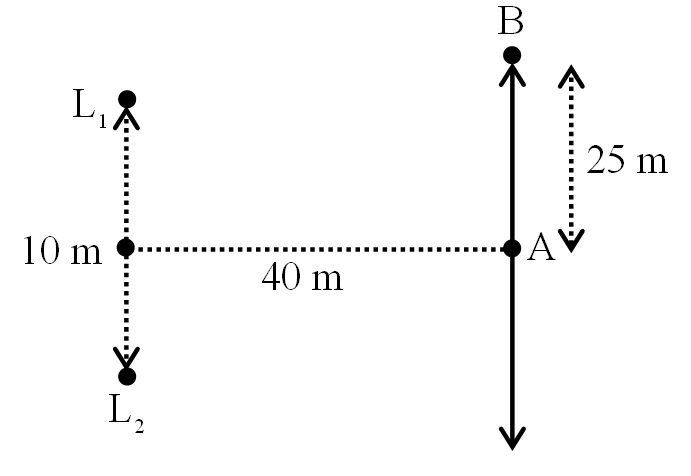

L2) are placed with a separation of 10 m, as shown in figure. Both speakers are fed with an audio input signal of same frequency with constant volume. A voice recorder, initially at point
A, at equidistance to both loud speakers, is moved by 25 m along the line
AB while monitoring the audio signal. The measured signal was found to undergo 10 cycles of minima and maxima during the movement. The frequency of the input signal is _____ Hz.
(Speed of sound in air is 324 m/s and

= 2.23)
