Logic Gate Circuit Output States

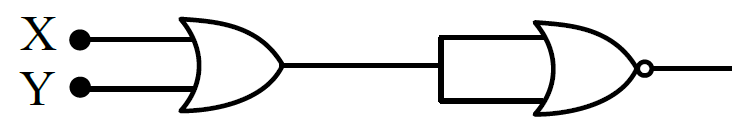

The output of the circuit is low (zero) for :
(A) X = 0, Y= 0 (B) X = 0, Y= 1
(C) X = 1, Y= 0 (D) X = 1, Y= 1
Choose the correct answer from the options given below :
(A) X = 0, Y= 0 (B) X = 0, Y= 1
(C) X = 1, Y= 0 (D) X = 1, Y= 1
Choose the correct answer from the options given below :
