Logic Statements and Operations
Easy
Logic Circuit Output

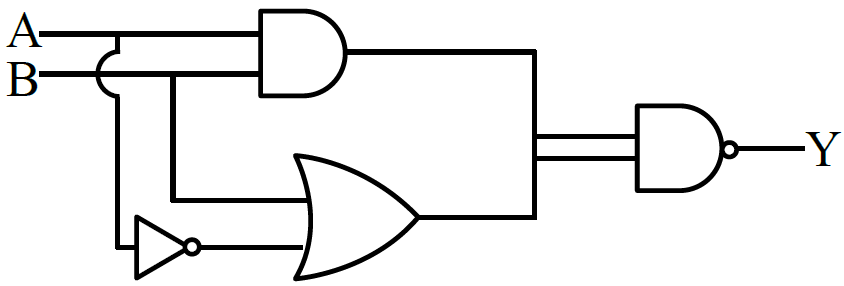

Consider the following logic circuit.
The output is Y = 0 when :
SELECT ONE OPTION
A
A = 1 and B = 1
B
A = 0 and B = 1
C
A = 1 and B = 0
D
A = 0 and B = 0
