AC Circuits and Resonance
Medium
LCR Circuit Power Factor

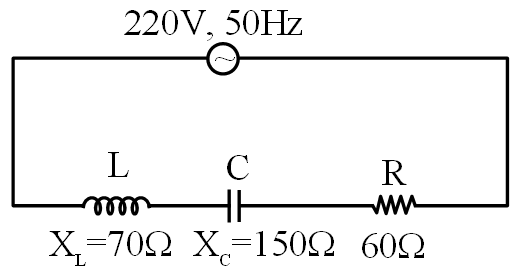

For the series LCR circuit connected with 220 V, 50 Hz a.c source as shown in the figure, the power factor is
. The value of α is______
SELECT ONE OPTION
A
4
B
10
C
6
D
8
