Displacement-Time Graph Analysis

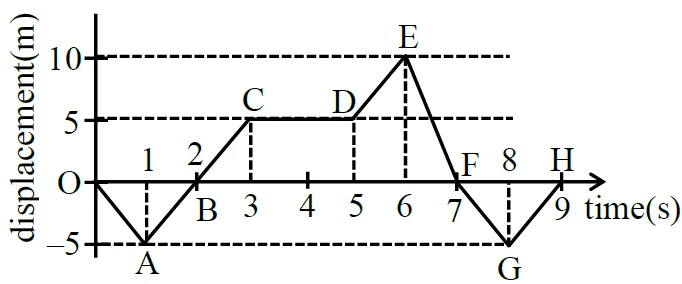

The displacement x versus time graph is shown below.
(A) The average velocity during 0 to 3 s is 10 m/s
(B) The average velocity during 3 to 5 s is 0 m/s
(C) The instantaneous velocity at t = 2 s is 5 m/s
(D) The average velocity during 5 to 7 s and instantaneous velocity at t = 6.5 s are equal
(E) The average velocity from t = 0 to t = 9 s is zero
Choose the correct answer from the options given below:
(B) The average velocity during 3 to 5 s is 0 m/s
(C) The instantaneous velocity at t = 2 s is 5 m/s
(D) The average velocity during 5 to 7 s and instantaneous velocity at t = 6.5 s are equal
(E) The average velocity from t = 0 to t = 9 s is zero
Choose the correct answer from the options given below:
SELECT ONE OPTION
