Diode as a rectifier
Easy
Diode Circuit Voltage Waveform

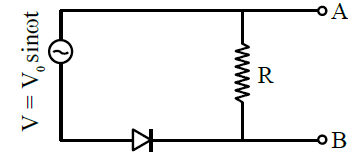

In the circuit shown here, assuming threshold voltage of diode is negligibly small, then voltage V
AB
is correctly represented by :
SELECT ONE OPTION

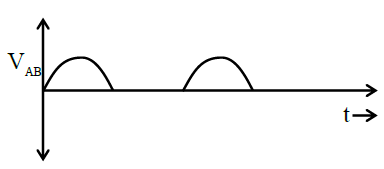

A
V
AB
would be zero at all times

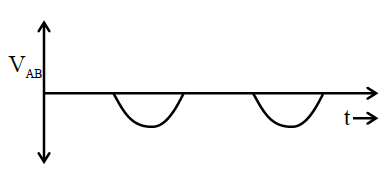

B

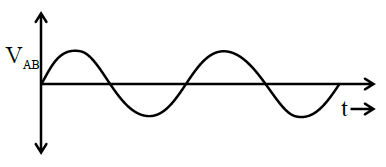

C
