Logic Statements and Operations
Medium
Digital Circuit Inputs P Q

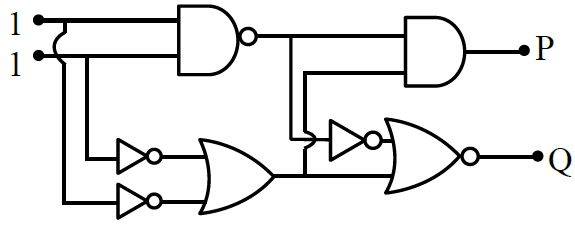

In the digital circuit shown in the figure, for the given inputs the P and Q values are :
SELECT ONE OPTION
A
P = 1, Q = 1
B
P = 0, Q = 0
C
P = 0, Q = 1
D
P = 1, Q = 0
