Circuit Ammeter Reading Switch ON (Jee Mains)

Inductance

Medium

Circuit Ammeter Reading Switch ON

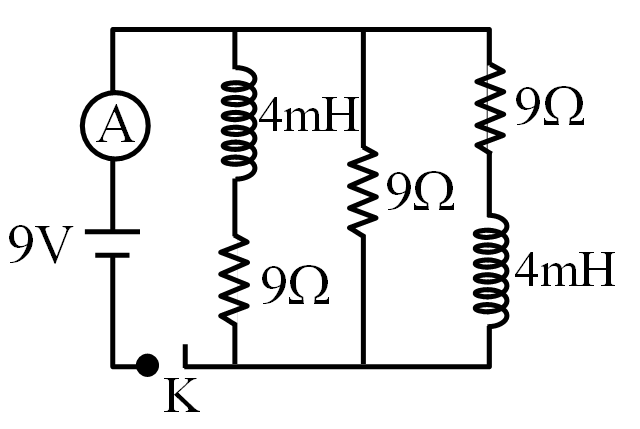

Figure shows the circuit that contains three resistances (9 Ω each) and two inductors (4 mH each). The reading of ammeter at the moment switch K is turned ON, is _________A.
