Series and parallel combinations of resistorsMedium
Analysis of Resistor Circuit

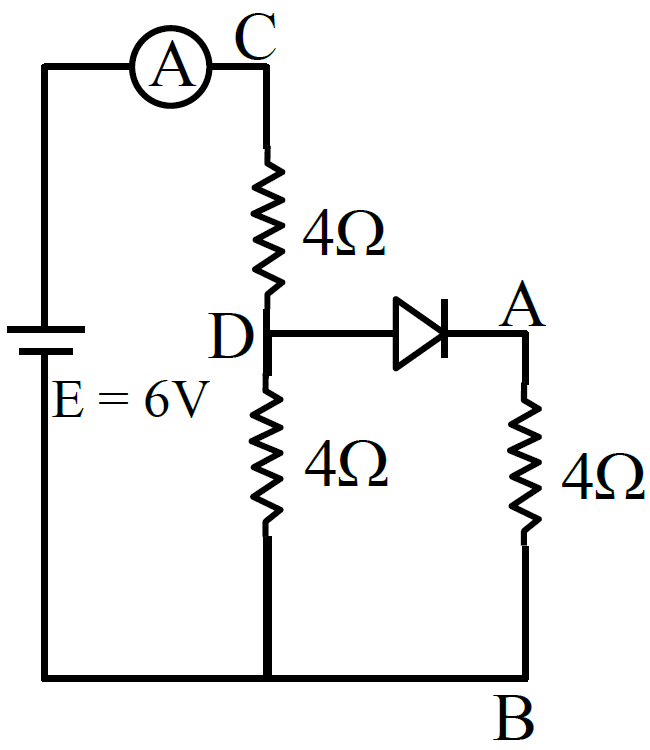

Refer to the circuit diagram given in the figure, which of the following observation are correct?
A. Total resistance of circuit is 6 Ω.
B. Current in Ammeter is 1A
C. Potential across AB is 4 Volts.
D. Potential across CD is 4 Volts.
E. Total resistance of the circuit is 8Ω.
Choose the correct answer from the options given below:
A. Total resistance of circuit is 6 Ω.
B. Current in Ammeter is 1A
C. Potential across AB is 4 Volts.
D. Potential across CD is 4 Volts.
E. Total resistance of the circuit is 8Ω.
Choose the correct answer from the options given below:
SELECT ONE OPTION
